Titanium Plates and Sheets Professional Manufacturer

Titanium Plate and Sheet Manufacture in China

FXZTi has over 15 years of experience in developing, designing, and manufacturing titanium plates and sheets.
We hold ISO9001 and AS9100D certifications and provide EN 1024 3.1 certificates.

FXZTi Titanium Plate And Sheet

The main difference between titanium plate and sheet lies in thickness.
“Titanium Sheet” typically refers to a material with a thickness of less than or equal to 5.00 mm (3/16 inches) and a width greater than or equal to 600 mm (24 inches).
“Titanium Plate” refers to materials with a thicker thickness, greater than or equal to 5.00 mm (3/16 inches) in thickness and greater than 250 mm (10 inches) in width. ‌

What are the specifications of the titanium plates and sheets offered by FXZTi?

  • Customized Thickness Range: 0.3mm to 325mm.
  • CP Gr1-4 Titanium Plate And Sheet: ASTM B265, ASTM F67.
  • Ti64 Gr5 Titanium Plate And Sheet: ASTM B265, AMS4902,AMS4904,AMS4911,AMS4914,AMS4916,AMS4919 etc.
  • Gr23 Gr5 ELI Titanium Plate And Sheet: ASTM B265, ASTM F136.

Titanium Plate And Sheet By Grades

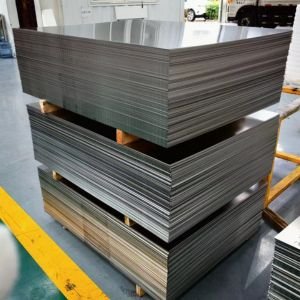

CP Gr1-4 Titanium Sheet



  • Thickness: 0.3mm-325mm.
  • Width:10mm-2500mm
  • Length:100mm-6000mm
  • Standard: ASTM B265, ASTM F67.
  • Surface: Back, Pickling, Sand-blasting, Polish.

Allowable cut bespoke.

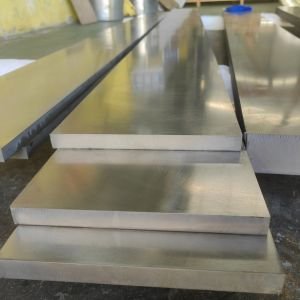

Gr5 (Ti64) Titanium Plate And Sheet
Gr5 (Ti64) Titanium Plate And Sheet



  • Thickness: 0.3mm-350mm.
  • Width:10mm-2250mm
  • Length:100mm-4000mm
  • Standard: ASTM B265, AMS4911,AMS4916,AMS4919.
  • Surface: Back, Pickling, Sand-blasting, Polish.

Allowable cut bespoke.

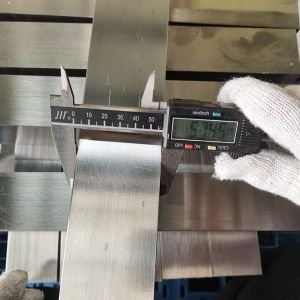

Gr7(Ti-0.25Pd) Titanium Plate And Sheet
Gr7(Ti-0.25Pd) Titanium Plate And Sheet



  • Thickness: 0.3mm-265mm.
  • Width:10mm-2150mm
  • Length:100mm-4200mm
  • Standard: ASTM B265, AMS4902,AMS4911,AMS4919.
  • Surface: Back, Pickling, Sand-blasting, Polish.

Allowable cut bespoke.

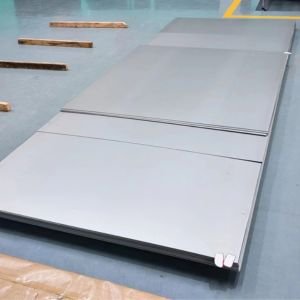

Gr12 (Ti-0.3Mo-0.8Ni) Titanium Plate And Sheet
Gr12(Ti-0.3Mo-0.8Ni) Titanium Plate And Sheet



  • Thickness: 0.3mm-365mm.
  • Width:10mm-2550mm
  • Length:100mm-6500mm
  • Standard: ASTM B265.
  • Surface: Back, Pickling, Sand-blasting, Polish.

Allowable cut bespoke.

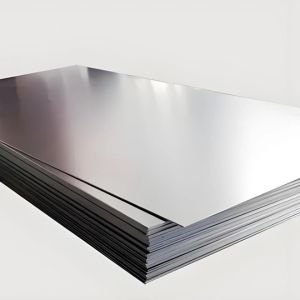

Gr5 ELI&Gr23 Titanium Plate And Sheet
Gr5 ELI&Gr23 Titanium Plate And Sheet



  • Thickness: 0.5 mm-255 mm.
  • Width:10mm-2150mm
  • Length:100mm-4500mm
  • Standard: ASTM B265, ASTM F136,AMS4911.
  • Surface:Back, Pickling, Sand-blasting, Polish.

Allowable cut bespoke.

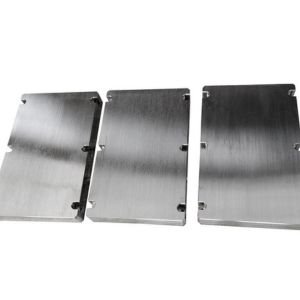

Ti64 Titanium Alloy for 3D Printer Build Plates
Ti64 Titanium Alloy for 3D Printer Build Plates



  • Thickness: 10 mm-300 mm.
  • Width:100mm-1850mm
  • Length:100mm-1850mm
  • Standard: ASTM B265, ASTM B381,
  • Surface:  Polish.

Customize according to the design drawings.

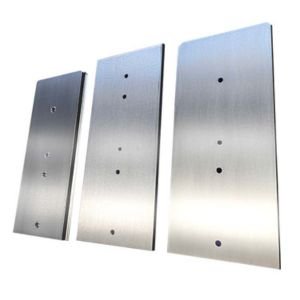

Gr2 Titanium Sputtering Targets
Gr2 Titanium Sputtering Targets



  • Thickness: 10 mm-25 mm.
  • Width:100mm-450mm
  • Length:100mm-1750mm
  • Standard: ASTM B265, ASTM B381,
  • Surface:  Polish.

Customize according to the design drawings.

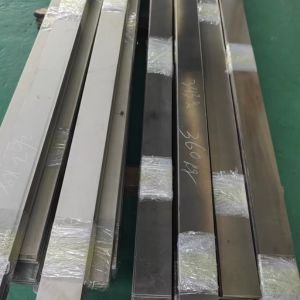

Gr9(Ti-3Al-2.5V) Titanium Plate And Sheet



  • Thickness: 0.3mm-300mm
  • Width:10mm-2050mm
  • Length:100mm-3500mm
  • Standard: ASTM B265
  • Surface: Back, Pickling, Sand-blasting, Polish.

Allowable cut bespoke.

8 Products Found.

The Characteristics of Titanium Plate And Sheet

Titanium bar Excellent Corrosion Resistance
Excellent Corrosion Resistance

Titanium plate and sheet provide excellent resistance to most oxidizing, neutral, and inhibited reducing conditions and are passive under mildly reducing conditions.

Titanium bar High Strength-to-Density Ratio
High Strength-to-Density Ratio

Titanium plates and sheets have high specific strength due to their low density of about 4.51 g/cm³, which is only 60% of that of steel. This makes manufacturing parts with high strength, rigidity, and lightweight possible using titanium plates and sheets.

Biocompatibility of Titanium bar
Biocompatibility

Titanium plates and sheets are biocompatible due to their stable chemical properties, oxide films, and excellent physical properties, ensuring compatibility with human tissues, and making them important in the medical field.

Titanium bar good Weldability
Good Weldability

Titanium plate and sheet have good weldability, easy processing, and assembly, improved work efficiency, and Its power boasts excellent machinability, and high corrosion resistance.

EN 1024 3.1 Material Certificate

The plates and sheets manufactured by the company have passed Bureau Veritas 9001 quality system certification qualification and can provide EN 10204 3.1 material certificate.

EN 1024 3.1 Material Certificate

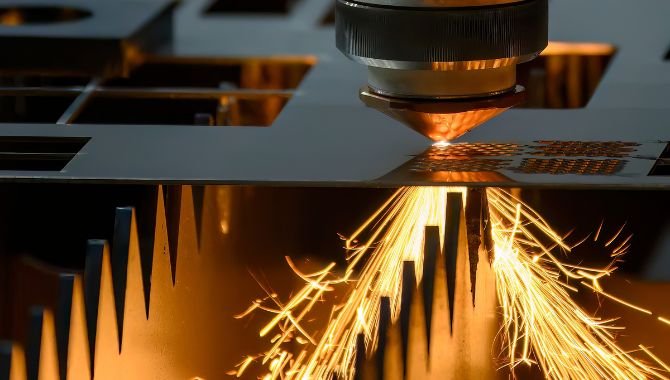

Any Titanium Plates and Sheets for Your Busines

Any Titanium Plates and Sheets for Your Busines

We can supply titanium plates and sheets in various grades, including GR1-4, GR5, GR5ELI, GR7, GR12, GR23etc. We can also customize titanium plates and sheets to various specifications, including thickness, length, and width.

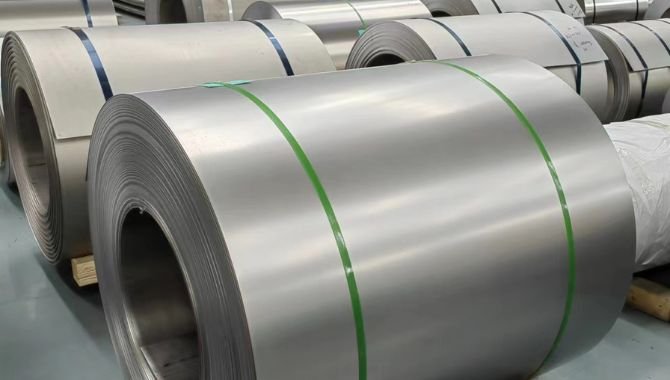

Stock is Sufficient

Our company maintains a long-term inventory of over 30 tons of plates and sheets, encompassing a variety of specifications and grades. Should you wish to make a purchase, we are prepared to expedite the shipment promptly.

The stock of titanium plate and sheet is sufficient

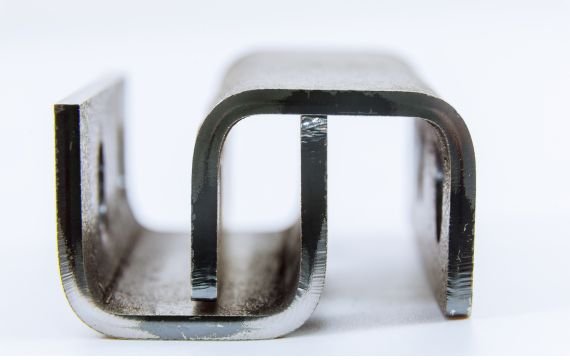

Why Select FXZTi to Customize Your Titanium Plates and Sheets

Why Select FXZTi to Customize Your Titanium Plates and Sheets

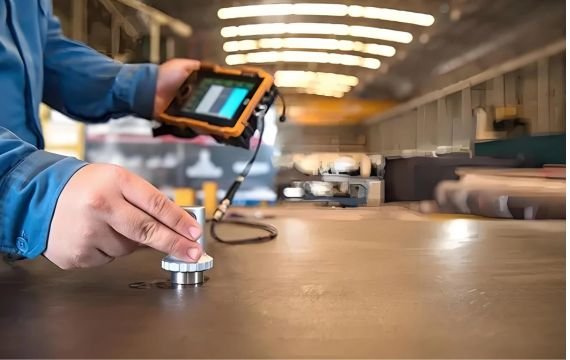

Ultrasonic Testing of Titanium Alloys

“FXZTi’s quality control system encompasses a series of essential elements designed to ensure that products meet established standards and specifications. These elements typically include:

1. **Quality planning**: This stage involves defining quality objectives, identifying required resources, and establishing corresponding processes to achieve expected outcomes.
2. **Quality assurance**: Taking a proactive approach, quality assurance involves systematic activities (such as process design, employee training programs, and regular audits) to prevent defects from occurring.
3. **Quality control procedures**: These are specific methods used in the production process to monitor and evaluate product characteristics. These techniques may include statistical process control (SPC), inspections at different stages of production, and comparing finished products to predetermined standards.
4. **Document and record management**: Detailed records are crucial for tracking compliance with quality standards, including procedures, inspection results, corrective actions taken, and any deviations from expected performance.
5. **Training programs**: Ensuring that all personnel involved in the production process have a thorough understanding of quality management principles is crucial for maintaining high levels of output.

Our products include GR1-GR4, GR5,GR7,GR23,GR12, and many more. Our metal boxes and all products meet the most stringent quality requirements, including ISO and AS9100D standards. Our valued customers rely on our strict quality assurance standards.

Application of Titanium Plates and Sheets in Different Industries

Aerospace
Aerospace

Titanium plates and sheets are widely used in aircraft for their lightweight, high-strength, and high-temperature resistance. They are also important in spacecraft manufacturing for their excellent fatigue and corrosion resistance.

Chemical
Chemical

Titanium plates and sheets are used to make corrosion-resistant pipes, tanks, and reactors, extending equipment lifespan and reducing maintenance costs. Titanium bars in heat exchangers improve chemical process efficiency and save energy.

Medical
Medical

Titanium plates and sheets are widely used in medical implants like artificial joints and bone plates because they’re biocompatible and have excellent mechanical properties.

Marine Engineering
Marine Engineering

Titanium plates and sheets are the preferred material for shipbuilding and marine engineering due to their exceptional corrosion resistance, used in marine structural components to withstand harsh environments.

Titanium plate and sheet banner

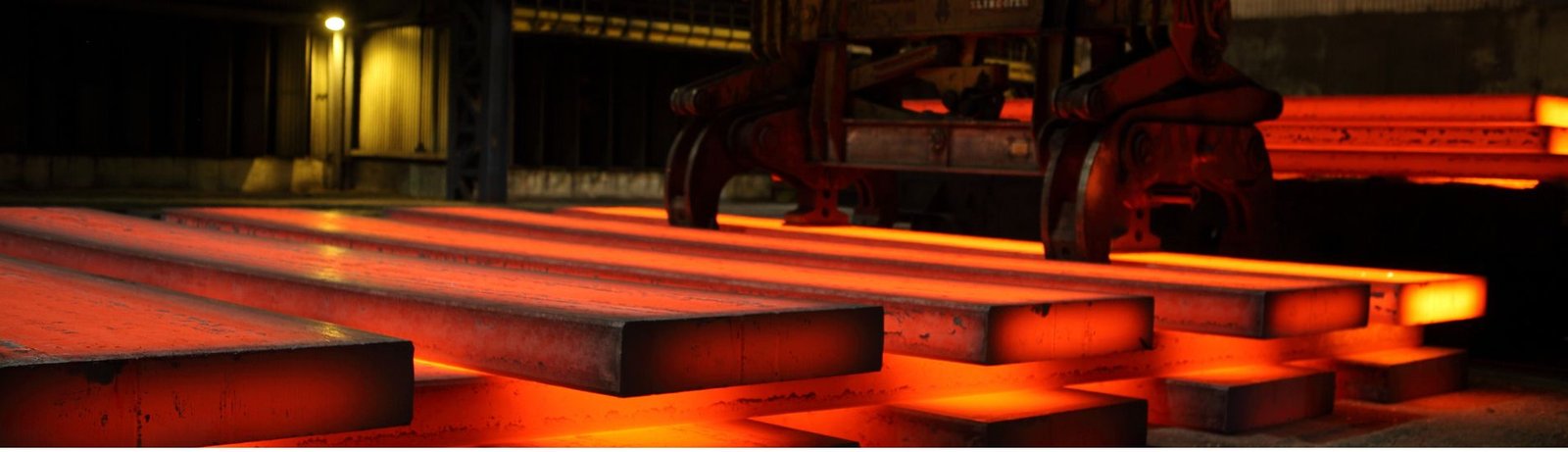

Titanium Plates and Sheets Professional Manufacturer

10+ Years of Experience. Competitive Price.EN 1024 3.1 Material Certificate.ISO9001 International Quality System Certification.

Titanium Plates and Sheets Data

Grade Condition Thickness(mm) The mechanical properties at room temperature shall not be lower than
Tensile strength
Rm/MPa
Yield strength Rp0.2/MPa Percentage elongation A/%
Gr1 M 0.3~2.0 370~530 250 40
>2.0~10.0 370~530 250 30
>10.0~30.0 370~530 250 25
Gr2 M 0.3~1.0 440~620 320 35
>1.0~2.0 440~620 320 30
>2.0~10.0 440~620 320 25
>10.0~30.0 440~620 320 18
Gr3 M 0.3~1.0 540~720 410 30
>1.0~2.0 540~720 410 25
>2.0~10.0 540~720 410 20
>10.0~30.0 540~720 410 16
Gr5 M 0.5~4.0 925~1150 870 12
>4.0~5.0 925~1150 870 10
>5.0~10.0 895~1100 825 10
>10.0~100.0 895~1100 825 9
Gr7 M 0.3~25.0 400 275~450 20
Gr12 M 0.3~25.0 485 345 18
