Fxzti Titanium Bar
Titanium bars, also known as titanium rods, are metal bars or rods made of titanium and titanium alloy. They have high strength, low density, good corrosion resistance, and biocompatibility. Titanium bars are widely used in aviation, medical, and chemical industries, among other fields.
Fxzti can produce round and square titanium bars based on customer specifications. The titanium bar’s appearance, ellipticity, straightness, finish, tolerance, internal chemical composition, mechanical properties, and metallographic structure adhere to ASTM B348, ASTM F67, ASTM F136, and AMS4928 requirements. Fxzti is also able to customize production processes to meet specific customer needs for products. Customers have recognized the company’s titanium bars in over 30 countries for their consistent quality, on-time delivery, and exceptional performance.

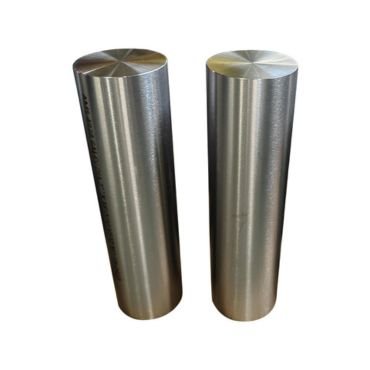

Titanium bar By Grades
Dimension:3 mm – 600 mm Dia
50mm-6000mm Len
Standard:ASTM B348,AMS 4928,4926,4967, MIL-T-9047,ASTM F67.
Surface: Back, Pickling, Sand-blasting, Polished
Allowable cut bespoke.

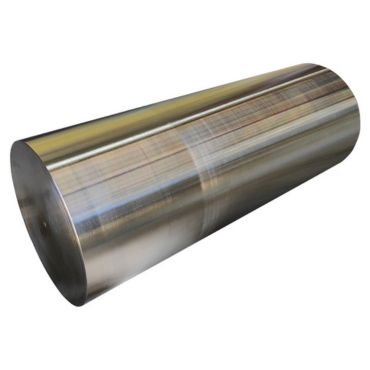

Dimension:3 mm – 600 mm Dia
50mm-6000mm Len
Formula: Ti64&Ti-6Al-4V
Standard:ASTM B348,AMS 4928,4926,4967, MIL-T-9047.
Surface: Back, Pickling, Sand-blasting, Polished
Allowable cut bespoke.
Dimension:3 mm – 600 mm Dia
50mm-6000mm Len

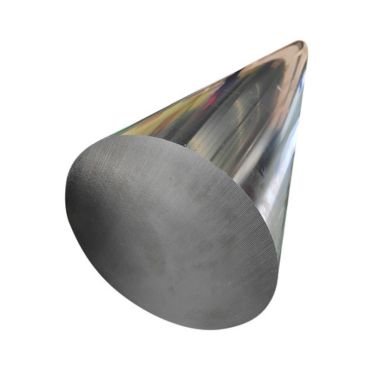

Formula: Ti-0.25Pd
Standard:ASTM B348,AMS 4928,4926,4967, MIL-T-9047.
Surface: Back, Pickling, Sand-blasting, Polished
Allowable cut bespoke.

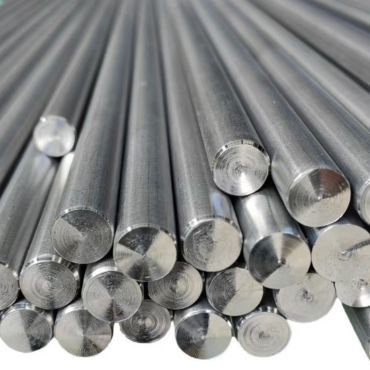

Dimension:3 mm – 600 mm Dia
50mm-6000mm Len
Formula:Ti-0.3Mo-0.8Ni
Standard:ASTM B348,AMS 4928,4926,4967, MIL-T-9047.
Surface: Back, Pickling, Sand-blasting, Polished
Allowable cut bespoke.

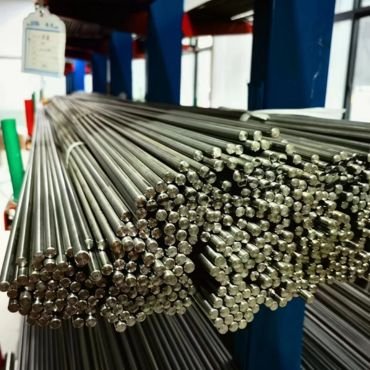

Dimension:3 mm – 300 mm Dia
50mm-6000mm Len
Formula:Ti64&Ti-6Al-4V,
Standard: ASTM F136
Surface: Back, Pickling, Polished
Allowable cut bespoke.
Dimension:3 mm – 600 mm Dia
50mm-6000mm Len

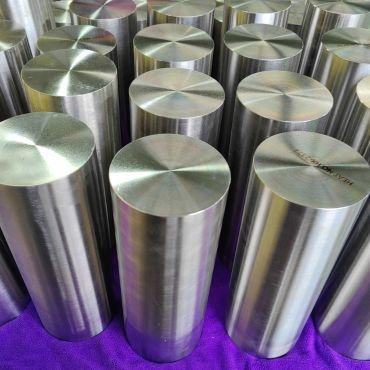

Formula:Ti-6Al-2Sn-4Zr-2Mo-Si
Standard: AMS 4975, ASTM B348, AMS 4928,4926,4967.
Surface: Back, Pickling, Sand-blasting, Polished
Allowable cut bespoke.
Dimension:3 mm – 600 mm Dia
50mm-6000mm Len

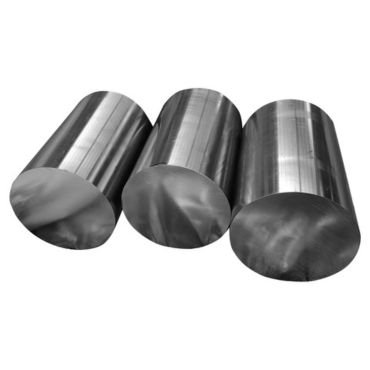

Formula:Ti-6Al-2Sn-4Zr-6Mo
Standard: AMS 4981, ASTM B348, AMS 4928,4926,4967.
Surface: Back, Pickling, Sand-blasting, Polished
Allowable cut bespoke.
Dimension:3 mm – 600 mm Dia
50mm-6000mm Len

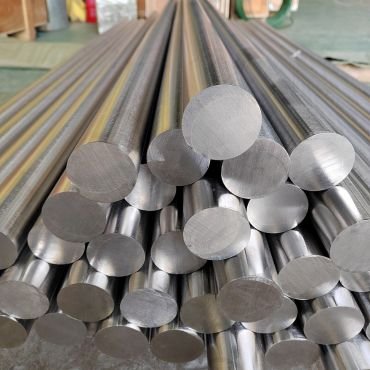

Formula: Ti-3Al-2.5V
Standard:ASTM B348,AMS 4928,4926,4967, MIL-T-9047.
Surface: Back, Pickling, Sand-blasting, Polished
Titanium bar Feature Box
Titanium bars provide excellent resistance to most oxidizing, neutral, and inhibited reducing conditions and are passive under mildly reducing conditions.
Titanium bars have high specific strength due to their low density of about 4.51 g/cm³, which is only 60% of that of steel. This makes manufacturing parts with high strength, rigidity, and lightweight possible using titanium alloy rods.
Titanium bars are biocompatible due to their stable chemical properties, oxide films, and excellent physical properties, ensuring compatibility with human tissues, and making them important in the medical field.
Titanium bars have good weldability, easy processing, and assembly, improved work efficiency, and It power boasts excellent machinability, and high corrosion resistance.
EN 1024 3.1 Material Certificate
The titanium and titanium alloy bars manufactured by the company have passed Bureau Veritas 9001 quality system certification qualification and can provide EN 10204 3.1 material certificate.
Custom Design Any Titanium bar for Your Busines
We can supply titanium alloy bars in various grades, including GR1-4, GR5, GR5ELI, GR7, GR12, GR23, etc. We can also customize titanium alloy bars in various specifications, including diameter, length, and weight.

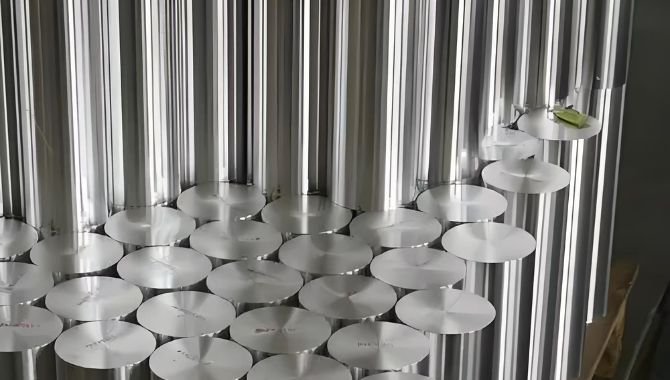

Stock is Sufficient
Our company maintains a long-term inventory of over 30 tons of titanium alloy bars, encompassing a variety of specifications and grades. Should you wish to make a purchase, we are prepared to expedite the shipment promptly.

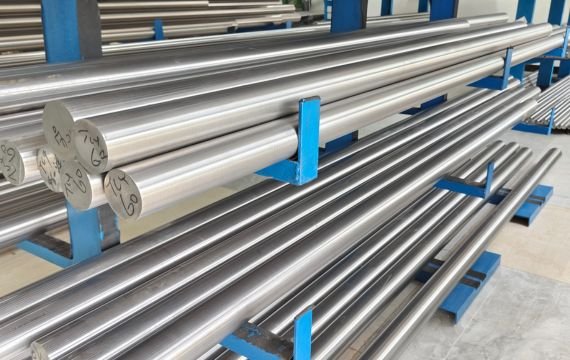

Why Choose FXZTi to customize Your Titanium Bars
FXZTi manufactures a full range of titanium bars. With nearly 20 years of experience in the industry, we have established a mature production process and quality control system in the production of titanium bars. We focus on high-quality, high-demand titanium bar custom manufacturing.
Our products include GR1-GR4, GR5\GR7\GR23\GR12, and many more. Our metal boxes and all products meet the most stringent quality requirements, including ISO and AS9100D standards. Our valued customers rely on our strict quality assurance standards.
Application of Titanium Bars in Different Industries
Titanium bars are widely used in aircraft for their lightweight, high strength, and high-temperature resistance. They are also important in spacecraft manufacturing for their excellent fatigue and corrosion resistance.
Titanium bars are used to make corrosion-resistant pipes, tanks, and reactors, extending equipment lifespan and reducing maintenance costs. Titanium bars in heat exchangers improve chemical process efficiency and save energy.

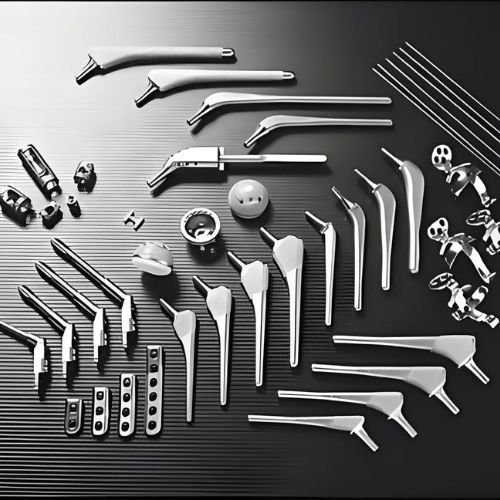

Titanium bars are widely used in medical implants like artificial joints and bone plates because they’re biocompatible and have excellent mechanical properties. In dentistry, titanium bars are preferred for dental implants because they’re light and very strong, providing strong support while reducing post-surgery discomfort.

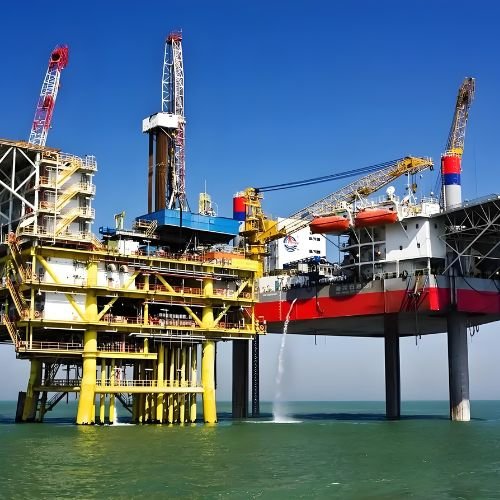

Titanium bars are the preferred material for shipbuilding and marine engineering due to their exceptional corrosion resistance, used in marine structural components to withstand harsh environments.
Dimension Parameter
- Bar Data
| Diameter (mm) | Forged / Extruded Bars(mm) | Rolled Bars (mm) | Polishing Bars, or Cold Drawing Bars(mm) |
| >7～15 | ±1.0 | ＋0.6 －0.5 |
±0.3 |
| >15～25 | ±1.5 | ＋0.7 －0.5 |
±0.4 |
| >25～40 | ±2.0 | ＋1.2 －0.5 |
±0.5 |
| >40～60 | ±2.5 | ＋1.5 －1.0 |
±0.6 |
| >60～90 | ±3.0 | ＋2.0 －1.0 |
±0.8 |
| >90～120 | ±3.5 | ＋2.2 －1.2 |
±1.2 |
| >120～160 | ±5.0 | — | ±1.8 |
| >160～200 | ±6.5 | — | ±2.0 |
| >200～230 | ±7.0 | — | ±2.5 |
